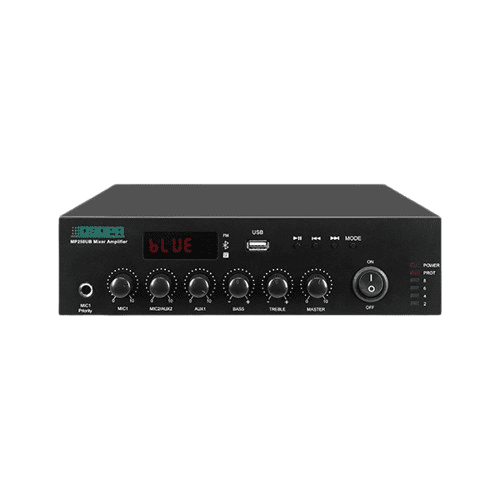

MP250UB - 250W - 1-Zone
Mini Digital Mixer Amplifier
● Support IR remote control.
● 2 MIC IN, 2 LINE IN, 1 LINE OUT.
● 2 EMC IN (100V/375mV), 1 EMC OUT.
● Built-in Bluetooth, radio, and USB function.
● With the priority function, priority is EMC/MIC1>AUX1/AUX2/MIC2.
● 100V or 70V constant voltage output, 4Ω~16 Ω constant resistance output.
● With master volume control, individual volume control of MIC & LINE, and treble and bass volume control.
Model | MP250UB |
Power Supply | AC110-120V / AC220~240V 50/60Hz(Select via the switch) |
MIC1 IN Sensitivity | 8mV±10% |
MIC2 IN Sensitivity | 8mV±10% |
AUX1 IN Sensitivity | 350mV±10% |
AUX2 IN Sensitivity | 350mV±10% |
EMC IN Sensitivity | 350mV±10% |
MIC Frequency Response | 200Hz～10kHz（±3dB） |
AUX Frequency Response | 100Hz～16kHz（±3dB） |
Noise | <10mV |
Distortion | <1% 1KHz |
Treble Adjustment | 10dB（±2） |
Bass Adjustment | 10dB（±2） |
Rated Output Power | 250W |
Interface Output Voltage | 70V,100V(Constant voltage output). |
Machine Dimension(D×W×H) | 250×230×66mm |
Package Dimension | 363×292×106mm (1PC) |
Maximum Package Dimension | 610×390×240mm (4PCS) |
Net Weight | 3KG |
Gross Weight | 3.7Kg (1PC) |
________________________________________________________________________________
_________________________________________________________________________________

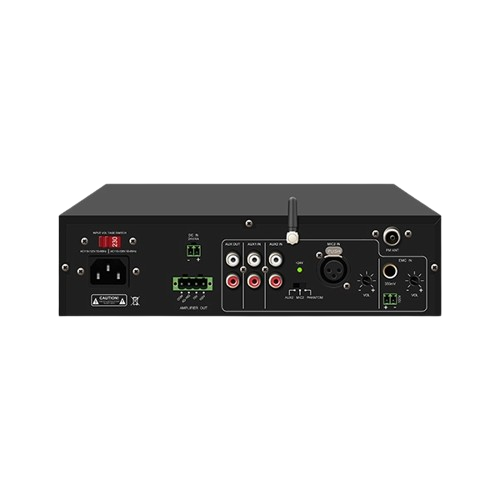

MP250UB is a 1.5U mini digital mixer amplifier with USB/FM/Bluetooth, with speaker output of 70V/100V & 4-16Ω optional. The product holds 2 AUX inputs and 1 AUX output. Also, it has 2 MIC inputs. The MIC 1 is a 6.3mm jack on the front panel and the MIC 2 is a XLR port on the rear panel. The phantom power is available in MIC 2. In addition, it provides individual volume control for each MIC and AUX, and has bass and treble control. What’s more, it has 2 EMC signal inputs (100V/375mV) and 1 EMC output.
