D5828C
397.430KWD
Tags:

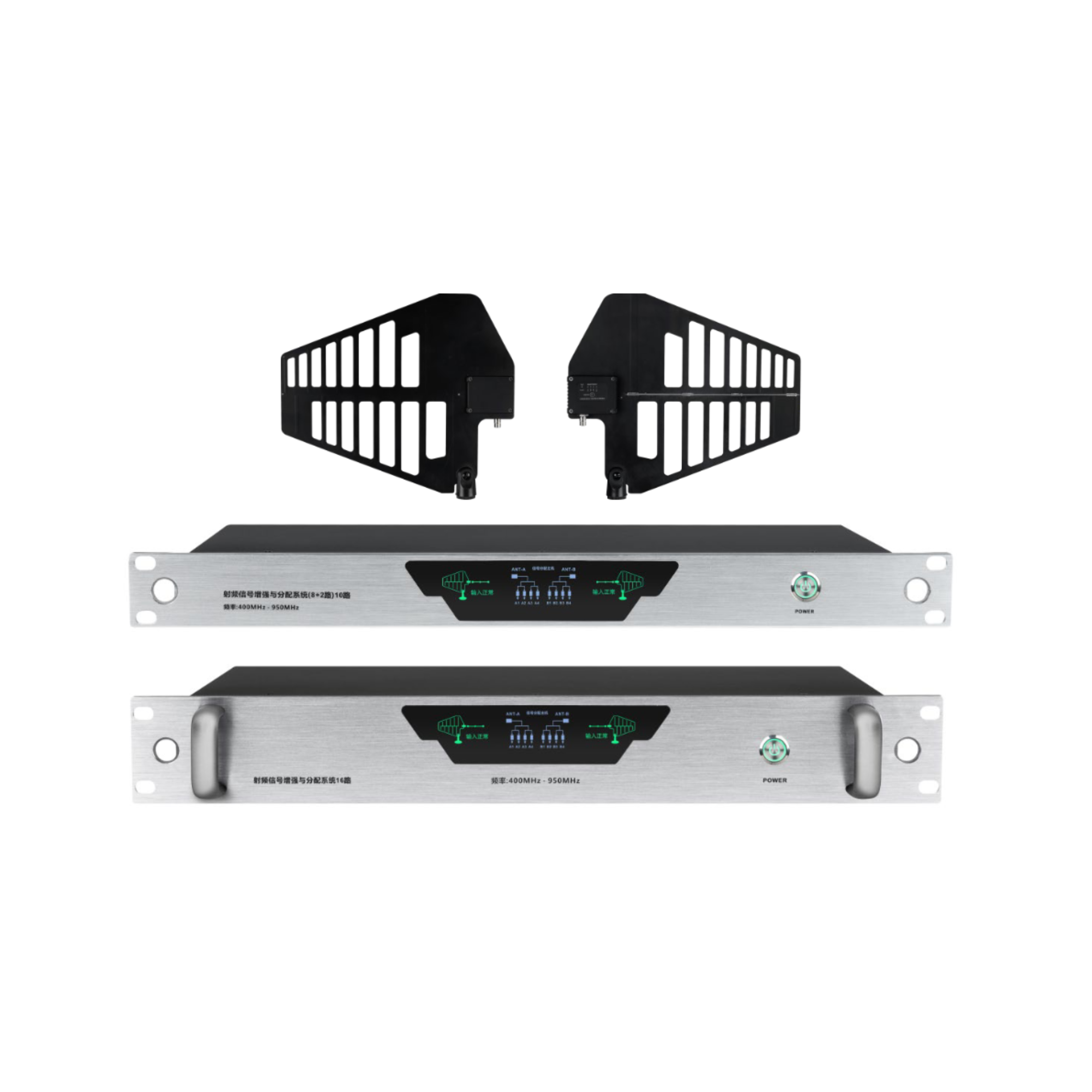

8/16-Channel High-Frequency Signal Amplification and Compensation System
- The effective operating frequency range is 400 MHz-950 MHz, with adjustable signal gain from +2dBm
- to +12dBm.
- The system is broadly compatible with most UHF wireless microphone receivers on the market.
- The antenna is equipped with a high-efficiency strong filtering circuit that effectively filters and isolates
- Description
- Features
- conference@dsppa.com / www.dsppacs.com The specifications will be subject to change without prior notice.
- Copyright © Guangzhou DSPPA Audio Co., Ltd. All rights reserved.
- unwanted interference signals outside the operating range.
- The antenna includes a high-performance high-frequency gain chip, which enhances and compensates
- microphone signals without loss.

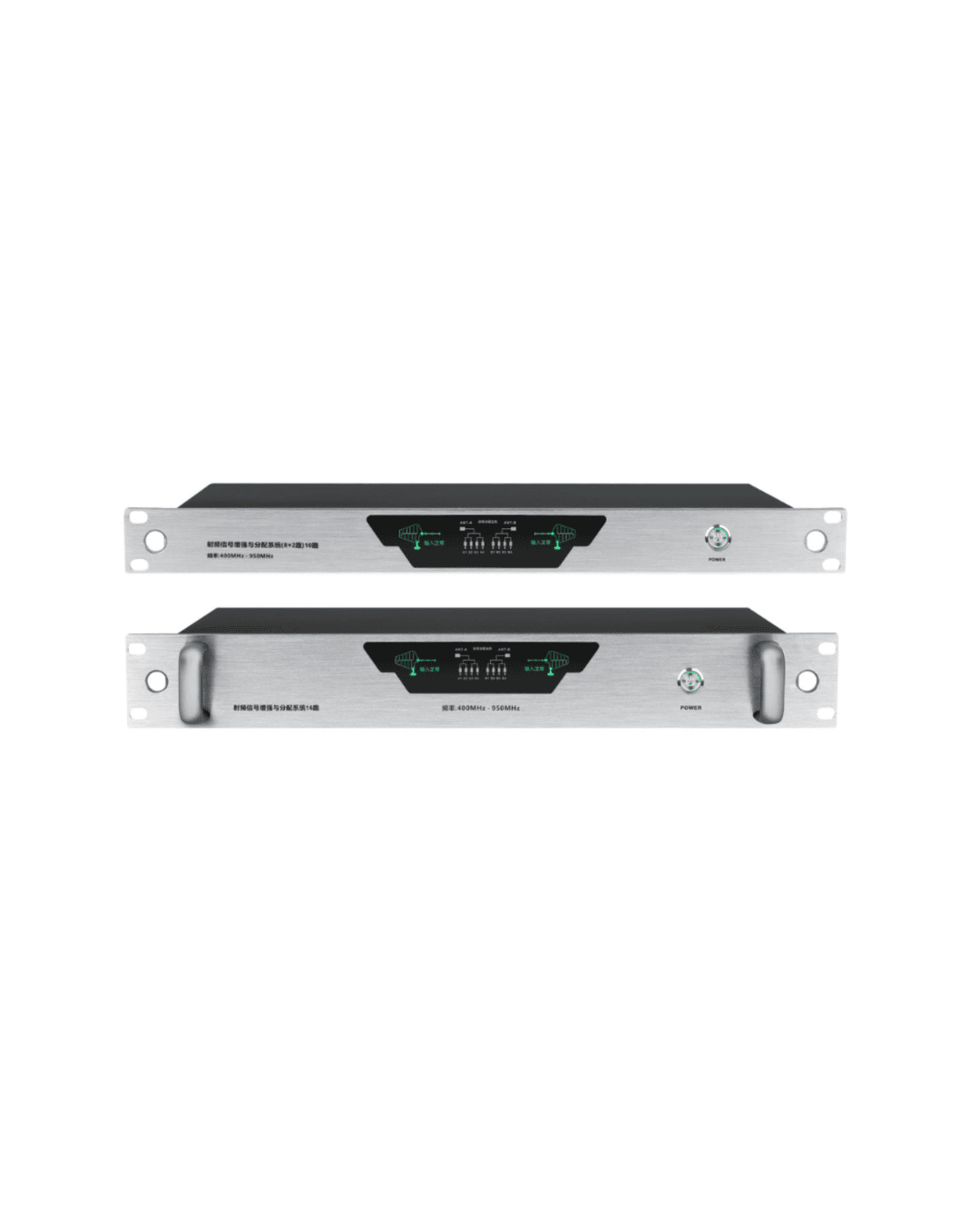

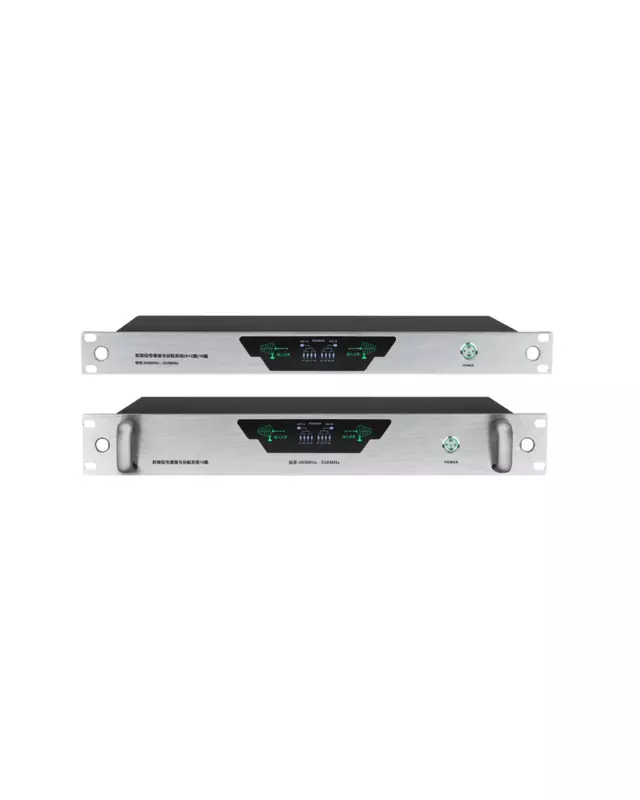

- The system distribution host provides 8+2 channels/16 channels of stable high-quality signal output
- (expandable through cascading multiple units).
- The system distribution host provides 4 channels of stable DC power output specifically for powering
- microphone receivers (each channel supports 12V/1A load).
- All coaxial cables are specialized high-frequency copper core cables with a 5-layer structure and
- shielding aluminum foil.
- The system includes two telescopic and steering-adjustable metal mounting stands for the directional
- antenna.
- The directional antenna and gain booster control circuit are ingeniously integrated, making the structure
- more compact and durable.
- The working parts of the directional antenna circuit are protected by a weatherproof metal casing,
- suitable for long-term outdoor installation.
- The system host features a system connection status indicator; the indicator light is normally on when
- the antenna is properly installed and functioning.
- The directional antenna features a connection status indicator; the indicator light is normally on when
- the directional antenna is properly connected to the system host and functioning.
