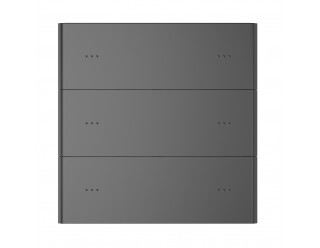

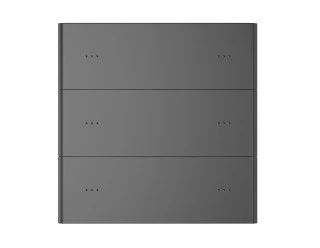

6-Button Scene Panel (KNX)
- Work with actuators for switching, dimming, color adjustment, and blind blind control
- Supportscene calling and storage
- Enabledelayed value transmission (e.g switch or dimming values)
- Allowmultiple actions via a single button
Specification
- Product Model: KXKS-B1B2-EU;KXKS-B1B4-EU;KXKS-B1B6-EU;KXKS-B1B8-EU
- Bus Voltage: 21-30V DC
- Bus Current: <12mA
- Bus Consumption: <360mW
- Auxiliary Voltage: 21V-30V DC
- Auxiliary Current： ＜16mA(24V /2、4 Button) ＜19mA(24V/ 6 Button） ＜21mA(24V/ 8 Button） ＜14mA(30V /2 Button) ＜16mA(30V/ 4、6、8 Button）
- Working Temperature:-5 ~ 45°C
- Protection Level: IP20
- Working Humidity: <93%RH, non-condensing
- Installation Method: Standard 60mm installation box
- Connection:Bus connection Terminals(diameter 0.8mm)
- Product Dimensions: 86×86×38.2mm
- Weight: 0.15kg
- Certification: CE、EIB/KNX
52.800KWD
