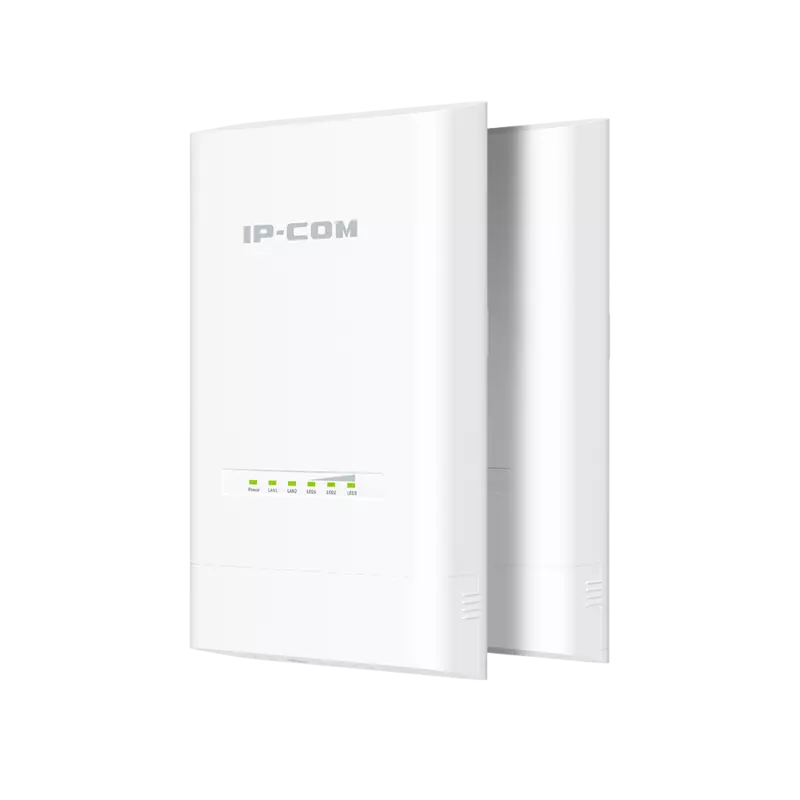

CPE12
5GHz 5km Point to Point Outdoor CPE
High-Speed Performance: Supports 5GHz 11ac technology with up to 867Mbps wireless speed and 450Mbps throughput for PtP connections.
Long-Range Coverage: Equipped with a 12dBi directional antenna for stable connections over distances up to 5km.
Plug and Play Setup: Includes iLink auto-bridge and factory pre-configuration for fast and easy deployment.
Outdoor Durability: Designed with IP65 waterproof enclosure and 6000V lightning protection for harsh environments.
Product Information | |
|---|---|
Model | CPE12(MS-Loco5AC) |
Dimensions | 193*109*61mm |
Deployment | Pole/Wall Mount |
Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
_______________________________________________________________________________
_______________________________________________________________________________

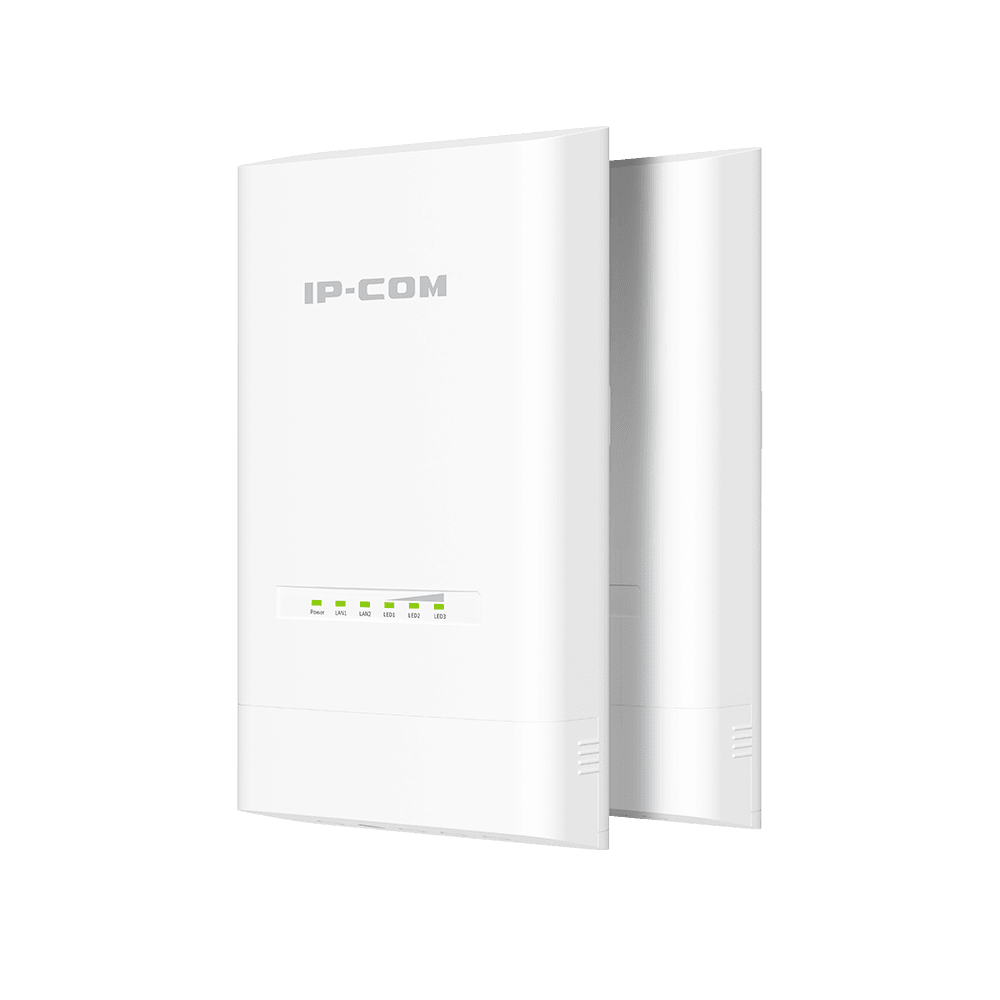

CPE12 (MS-Loco5AC) 1-pack/2-pack Overview
CPE12(MS-Loco5AC) 5GHz Gigabit Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology and gigabit ethernet Port design, the maximum throughput for ptp connection can be up to 450Mbps. PoE 802.3af/at, 12V 1A Passive PoE and 12V 1A DC power supply method supported make it flexible to deploy by engineers. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.
