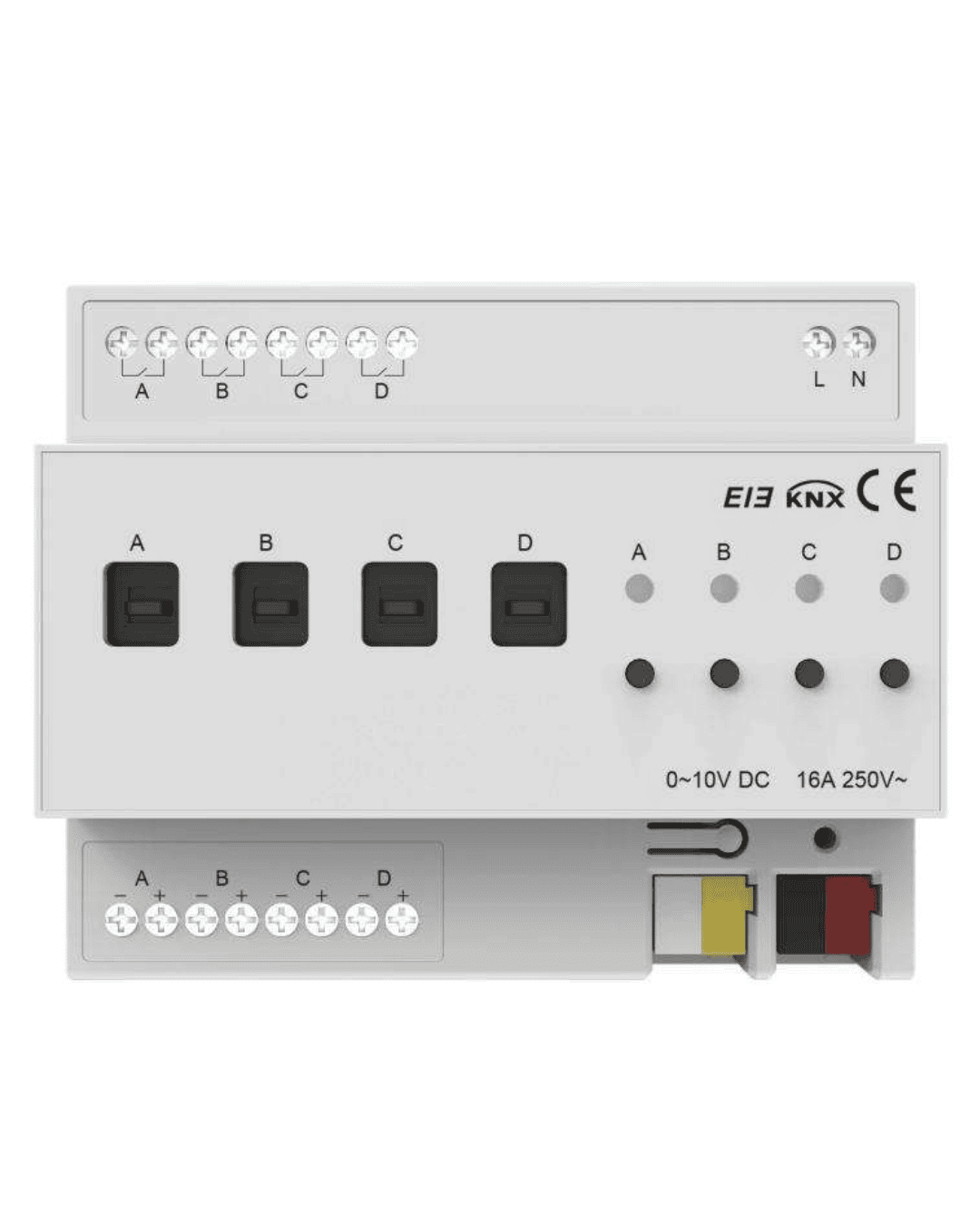

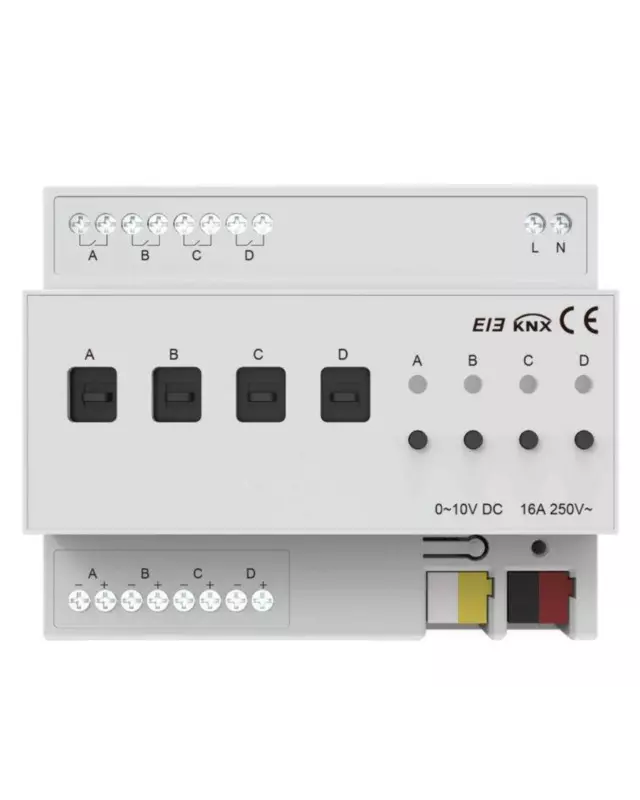

KXAC-B1DV4
122.000KWD
Tags:
4 Gang 0-10V Dimmer Module
Dimming Channels: 4 channels (0-10V)
Output Voltage: 0~10V DC, max 100mA per channel
Input Voltage: 2130V DC (bus), 110250V AC (dimming)
Bus Current: <12mA
Bus Power Consumption: <360mW
Operating Temp: -5 to 45°C
Operating Humidity: 0~93% RH (non-condensing)
Dimensions: 108×90×64 mm
Installation: 35mm DIN rail
Quantity
Product Details
