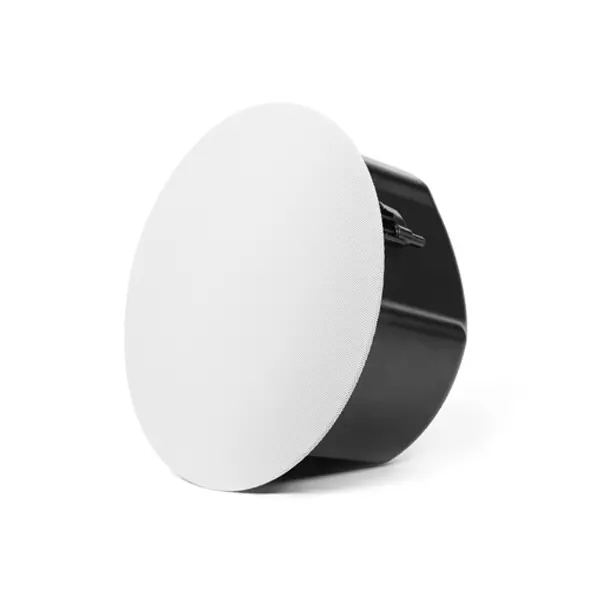

DSP7181-100W
Two-Way 8-Inch 100W Coaxial Ceiling Loudspeaker with Power Tap
● Rated Power: 100W for consistent audio performance,ensuring a stable audio output.
● Power Mode: This product supports both 8Ω low impedance and 100V constant voltage input, with a built-in power tap selector knob for easy adjustment.
● Sensitivity: 92dB at 1m/1W for efficient response.
● Max. SPL.: 112dB at 1m for loud output.
● Freq. Resp.: 70Hz-20KHz, covering the audible spectrum.
● Input Connector: 4-Pin Phoenix Terminal.
● Grille Type: Metal Grille.
Model | DSP7154 | DSP7166 | DSP7181 | |
Drive Units | Full-range | 5"x1 | 6"x1 | 8"x1 |
Tweeter | 1"x1 | 1.5"x1 | 1.5"x1 | |
Rated Power (RMS) | 40W | 60W | 100W | |
Power Adjustment | 100V | 40W-20W-10W-5W-2.5W | 60W-30W-15W-7.5W-3.7W | 100W-50W-25W-12W-6W |
8Ω | 40W | 60W | 100W | |
Freq. Response | 80Hz-20KHz | 75Hz-19KHz | 70Hz-20KHz | |
Sensitivity | 87dB | 90dB | 92dB | |
Maximum SPL | 103dB | 108dB | 112dB | |
Dimension(Diameter*Height) | 235mm×135mm | 271mm×150mm | 334mm×178mm | |
Cutout Dimension | 205mm | 238mm | 294mm | |
Input Connector | 4-Pin Phoenix Terminal | |||
Grille Type | Metal Grille | |||
