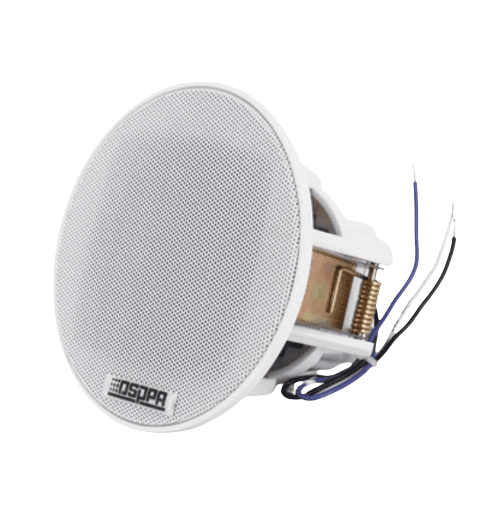

DSP3011 - 3" - 6W
High Quality Frameless Ceiling Speaker
● 3 inch, 6W ceiling speaker, 70V/100V.
● Neat and fashionable design with aluminum grille.
● High quality paper to create clear and resonant sound and high sensitivity.
● Applicable for public address and background music in schools, stadiums, parks, train stations, airports and shopping malls.
Model | DSP3011 | |
Unit Driver | 3"×1 | |
Rated Power (RMS) | 6W | |
Rated Voltage | 70V | 1.5W/3W |
100V | 3W/6W | |
Sensitivity (1m, 1W) | 88dB±2dB | |
MAX. SPL. (1m) | 95dB±2dB | |
Freq. Resp. | 120Hz~20kHz | |
Product Dimensions (W×H) | φ104×76mm | |
Net Weight | 0.5kg | |
________________________________________________________________________
___________________________________________________________________________
The DSP3011 is a ceiling speaker with a built-in 70v/100v transformer. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.

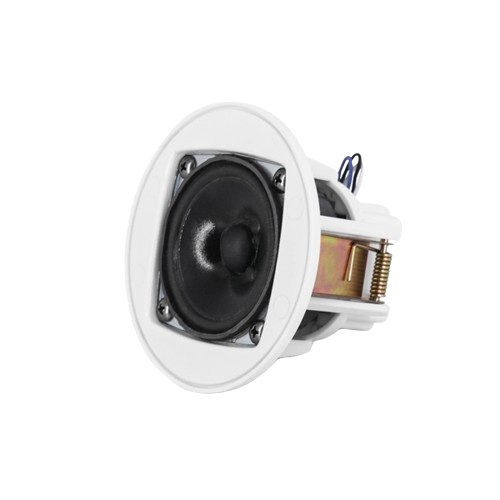

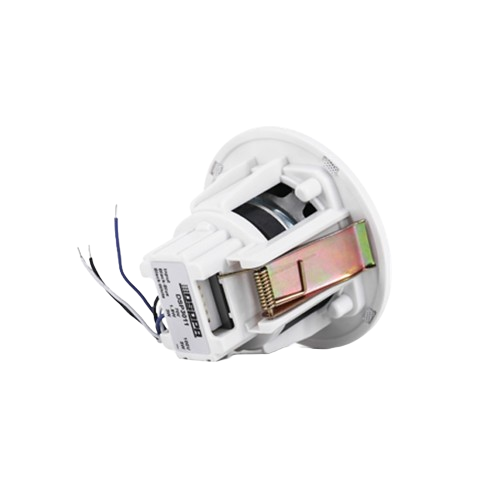

The built-in 3” speaker driver is designed of wide frequency response 120-20,000Hz, the multiple terminals 6W, can be applied to different occasions varied in area sizes and background noises. It is made of high quality engineering plastic, long-term durability, never out of shape and fading; Spring clip clamp makes the easy and secure installation; Driver surround excellent damping, long life, with clear and sonorous sound.
