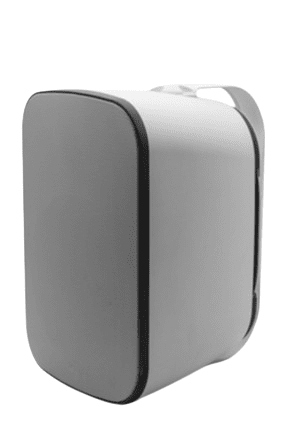

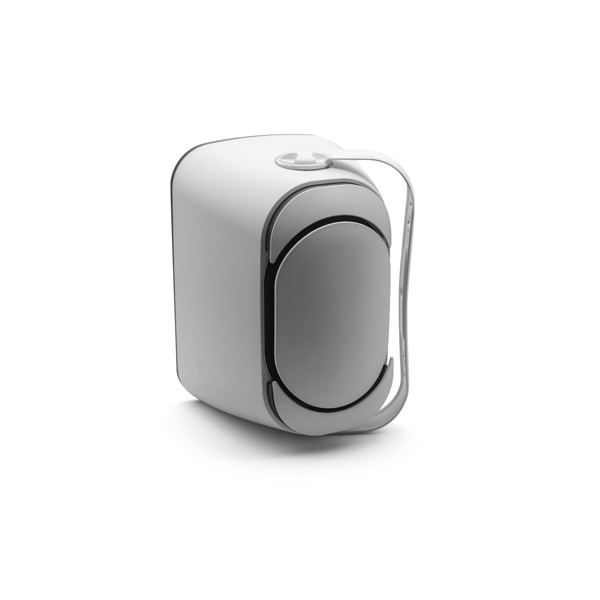

DSP5040W - 40W - Outdoor
Outdoor Wall Mount Speaker
● Rated output power 40W.
● With power tap for 70V/100V and 8Ω.
● Quick installation with water-proof brackets.
● Commercial PA system wall-mounted speaker.
● 1×5” and 1×6.5” for woofer and 1×1” for tweeter.
● IP65, all weather speaker for indoor and outdoor use.
● Exclusive optimal bass enhancement radiator technology.
● Fashionable appearance with extraordinary sound quality.
Model | DSP5020 | DSP5040 | DSP5050 | |
Tweeter | 1” silk soft dome | 1’’ silk soft dome | 1’’ silk soft dome | |
Woofer | 5’’ Graphite cone, rubber surround | 6.5’’ Graphite cone, rubber surround | 8’’ Graphite cone, rubber surround | |
Frequency Range +/-3 | 100Hz-20KHz | 90Hz-20KHz | 80Hz-20KHz | |
Power Handing RMS | 40 W program, 20 W (IEEE 219 ) | 40W | 50W | |
Max. SPL | 98dB±3dB | 102dB±3dB | 104dB±3dB | |
Sensitivity | 85dB±3dB | 86±3dB | 87±3dB | |
Power Adjustment | 70V | 1.25W-2.5W-5W-10W | 2.5W-5W-10W-20W | 3.12W-6.25W-12.5W-25W |
100V | 2.5W-5W-10W-20W | 5W-10W-20W-40W | 6.25W-12.5W-25W-50W | |
8Ω | 20W | 40W | 50W | |
Impedance | 8 ohms | 8 ohms | 8 ohms | |
Termination | Pluggable terminal blocks | Pluggable terminal blocks | Pluggable terminal blocks | |
Attachment | Brackets | Brackets | Brackets | |
Dimensions H*W*D | 258mm*168mm*163mm | 285mm*200mm*195mm | 381mm*250mm*250mm | |
Housing Material | ABS | ABS | ABS | |
Certificate | IP66 waterproof speaker | IP66 waterproof speaker | IP66 waterproof speaker | |
__________________________________________________________
__________________________________________________________
Description of DSP5020/DSP5040/DSP5050 IP66 Waterproof Outdoor Wall Mount Speaker
market where Beauty, Durability, Performance and User Friendliness come as ONE CORE CONCEPT.

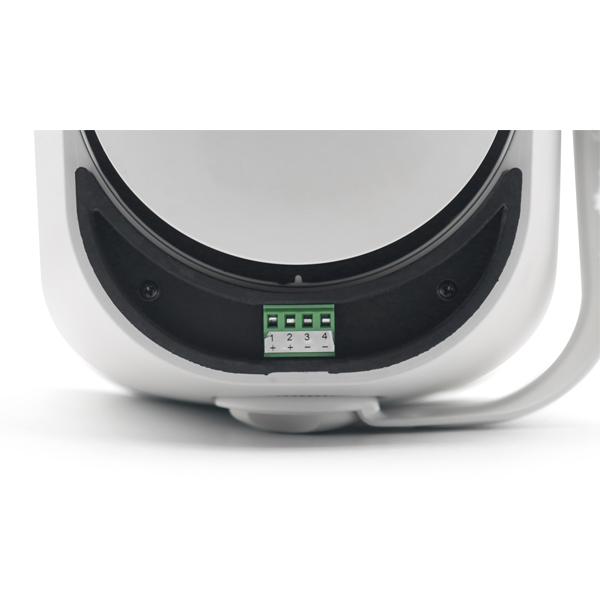

This speaker can deliver impeccable audio as well as clean and clear announcements for public address systems. The Unique Rear Covers not only helped to cover the Euroblock Connector and Bypass Selector (PA Transformer) in the rear of the speaker, it is also designed to merge seamlessly with the OBE Bass Radiator and the overall design of Speakers giving it an extra touch of modern sophistication.
