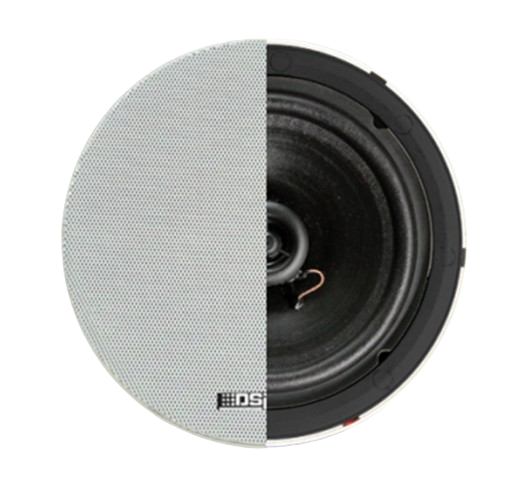

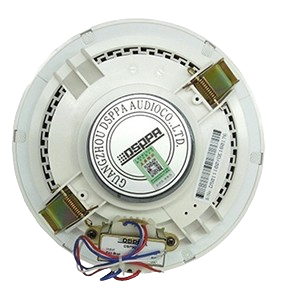

DSP5211 - 6.5" - 10W
10W Coaxial Frameless Ceiling Speaker
● Meet the IEC 268-5 power handling capacity (PHC) standard.
● 6.5" bass unit with magnetic circuit encapsulated of special engineering plastic process.
● Run continuously for 100 hours and carry out simulating acoustic feedback exposure (SAFE) test.
● Concentric 0.75" tweeter provides clear and round treble; the diffraction of a high profile provides a broad, uniform coverage.
● Bear double rated powers within a short period to ensure its high reliability under extreme conditions, prolong its service life, and reduce the possibility of occurrence of fault or degradation.
Model | DSP5211 | DSP5211C |
Drive Units | 6.5"*1 | 0.75"*1 |
RMS | 10W | |
Rated Voltage | 70V/100V | |
Sensitivity(1m, 1W) | 93±2dB | |
Max S.P.L. (1m) | 103±2dB | |
Freq. Res. | 90Hz-18KHz | |
Opening Diameter | Φ168-172mm | |
Dimension | Φ190*80mm | Φ190*105mm |
Weight | 1.0Kg | 1.1Kg |
________________________________________________________________________________
_________________________________________________________________________________
This product is a coaxial two-frequency ceiling speaker. with a wide range of sound diffusion. large output power. easy installation, which can reproduce the voice and music.
It's an ideal choice for you when you are in need of a ceiling speaker requiring perfect sound quality. This product is widely used in schools, offices, cafes, hospitals, hotels, and shopping malls.
