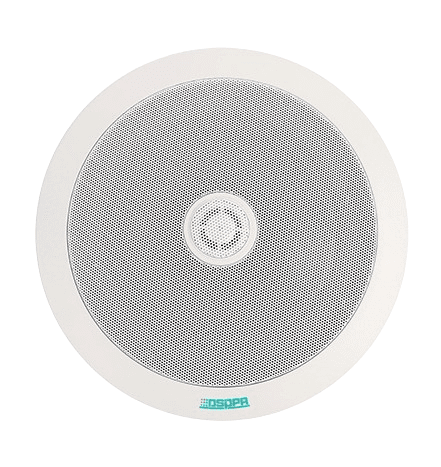

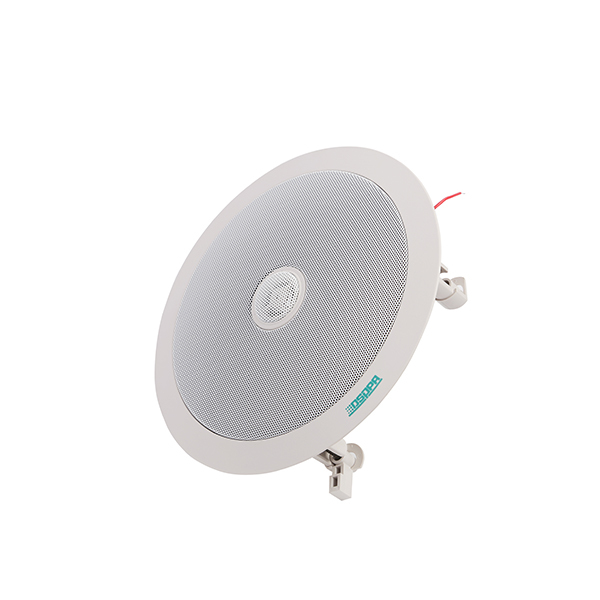

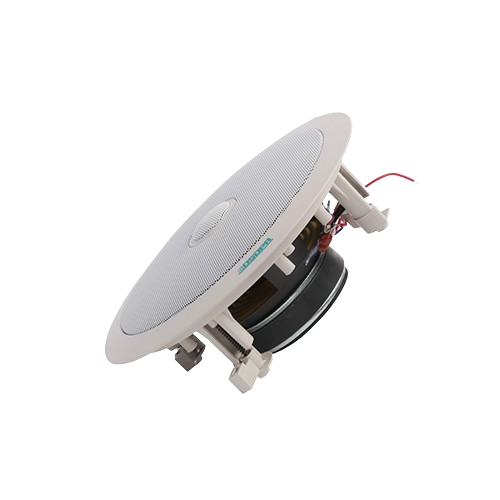

DSP703W - 6.5” - 20W
Coaxial Ceiling Speaker
● Coaxial speaker.
● 6.5” paper cone driver unit.
● In-ceiling type loudspeaker.
● Rated power output at 20W.
● Built-in 100v/70v transformer.
● Fast installation by spring clip.
● ABS Ivory White engineering plastic.
Model | DSP703 | |
Drive Units | 6.5”x 1 1’’x 1 | |
Rated Power | 20W | |
Rated Voltage | 70V | 10W |
100V | 20W | |
Sensitivity (1m, 1W) | 88±2dB | |
Max. SPL(1m) | 101±2 dB | |
Frequency Response | 60Hz-18kHz | |
Installation Hole | Φ194×Φ200mm | |
Weight | 1.8kg | |
_______________________________________________________
View/Download Datasheet
________________________________________________________

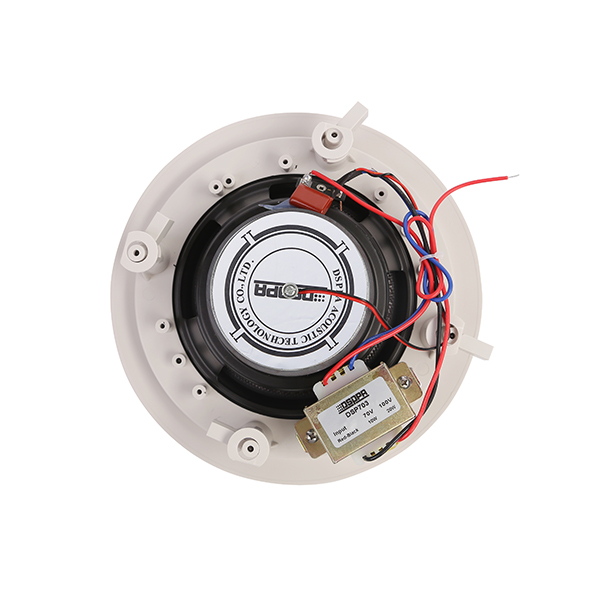

The DSP703 is a coaxial ceiling speaker with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The built-in 6.5'' speaker driver is designed of wide frequency response 60-18,000Hz, the multiple terminals 10W & 20W can be applied to different occasions vary in area sizes and background noises; The coaxial speaker is made of high quality engineering plastic, which ensures long-term durability, and will never be out of shape or fading; Spring clip clamp makes the easy and secure installation; Driver surround excellent damping, long life, clear and sonorous sound.
This coaxial loudspeaker is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
