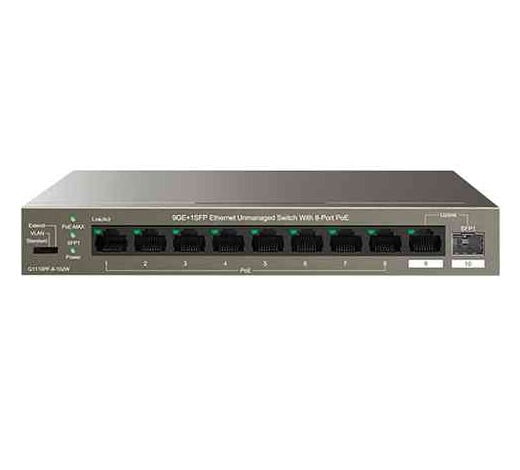

G1110PF-8-102W V1.0 8-PoE Gigabit 102W

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

LED indicators

One Link/Act LED indicator for each port
One PoE-MAX LED indicator for each device
One Power LED indicator for each device

Interfaces

8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power)
1 * 10/100/1000 Mbps Base-T Ethernet port (Data)
1 * 100/1000 Mbps Base-X SFP port

Lightning protection

Port: 6kV
Power: 6kV

Forwarding mode

Store-and-forward

Switching capability

20Gbps

Packet forwarding rate

14.9Mpps

MAC address table

16K

PoE Power Supply

IEEE 802.3af/at standards PoE power supply on ports 1-8
Voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is -

Input voltage

100-240V～ 50/60Hz

Dimensions

177.5 mm x 104 mm x 26 mm(L*W*H)

Power Consumption

Total power consumption: <102 W
Maximum PoE output: 92 W

Three-Mode Toggle

Three-mode toggle through one DIP switch:
1. Standard: Default mode. In this mode, all ports can communicate with each other.
2. VLAN: In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storm.
3. Extend: In this mode, ports 1 - 8 decrease to 10 Mbps in negotiation rate, but transmit up to 250 m in distance. All ports can communicate with each other.

Operating environment

Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing

Certificates

CCC、FCC、CE、RoHS
