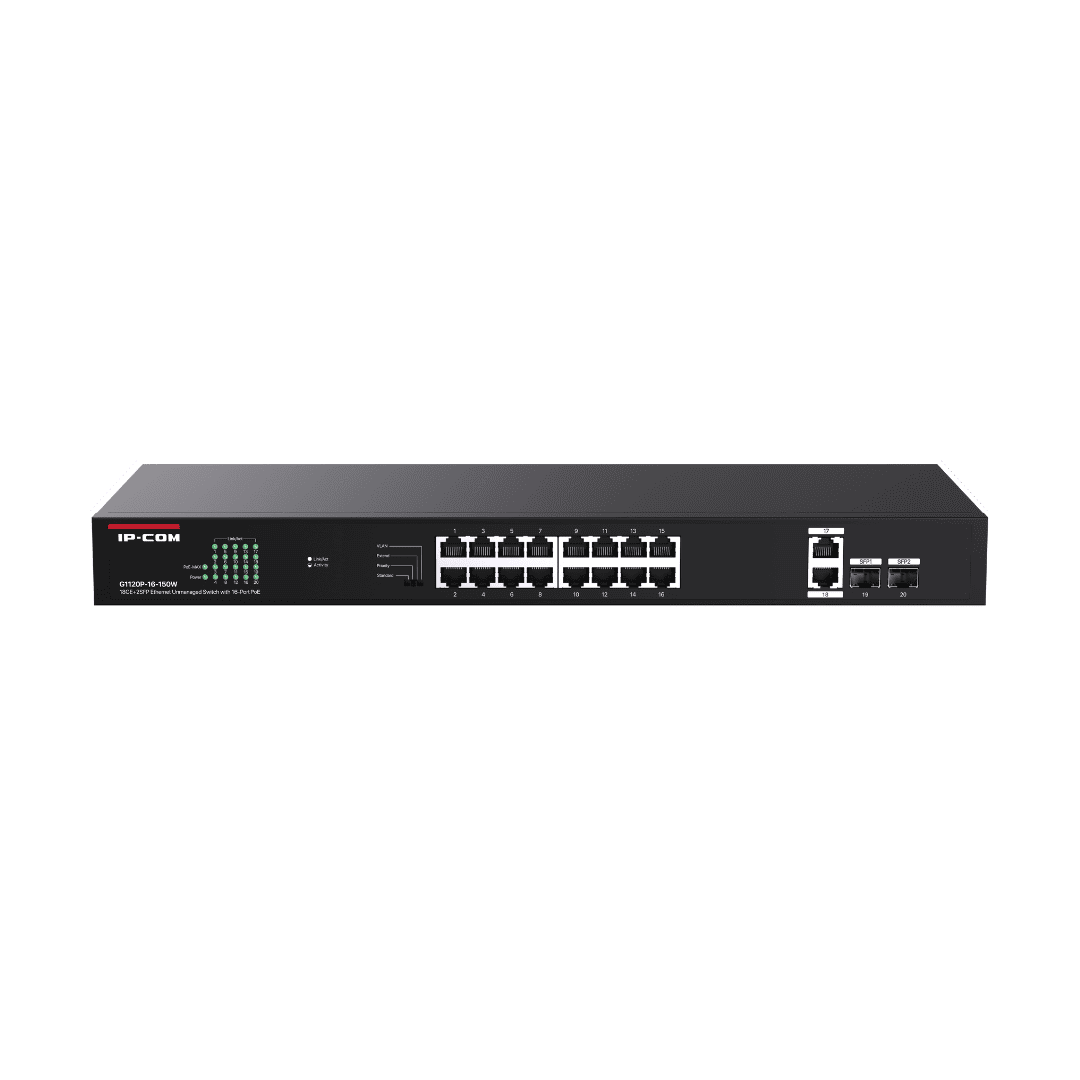

G1120P-16-150W - 16 PoE - 150W - Gigabit - Unmanaged

18GE+2SFP Ethernet Unmanaged Switch With 16-Port PoE

• Standards Compliance: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at

• Ports: 16 * 10/100/1000 Base-T Ethernet ports (Data/Power), 2 * 10/100/1000 Base-T Ethernet ports (Data), 2 * 100/1000 Base-X SFP optical ports

• MAC Address Table: 8K MAC address table with automatic learning

• Flow Control: IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control

• Backplane Bandwidth: 40Gbps non-blocking wire-speed forwarding

• Buffer: 4Mb large buffer for smooth data transmission

• PoE Power: 30W maximum output per PoE port, total PoE output 135W

• Design: Standard 1U height, suitable for rack mounting

• G1120P-16-150W    Overview

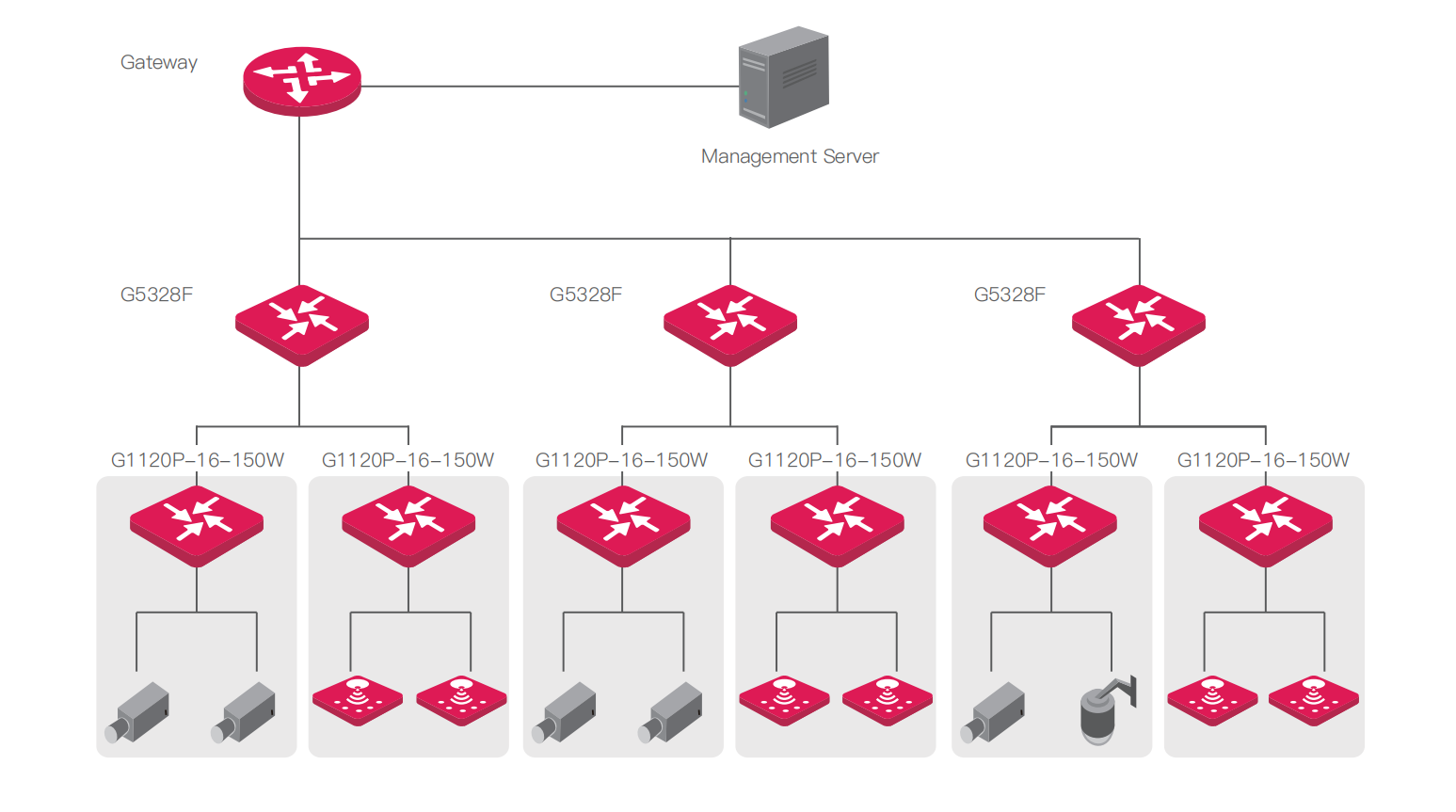

• G1120P-16-150W is a gigabit Unmanaged Ethernet PoE switch designed by IP-COM. The switch provides 16 gigabit PoE ports, 2 uplink gigabit RJ45 ports and 2 SFP ports. It supports the IEEE 802.3af/at standard and can automatically detect PDs and supply power. The maximum output power of a single port is 30W, and the power of the whole switch is 150W. It supports rack mounting, one-toggle settings, plug and play, and simple networking. It is an ideal choice for SMBs, hotels, schools, and parks with video surveillance and wireless networking requirements.
•

•


• Model	G1120P-16-150W
  Dimensions	440mm*178mm*44mm
  Mounting	Rack mounting : support Desktop mounting: support Wall mounting: support
  Enclosure material	Metal
  Interfaces	(18)1GE RJ45 ports (2)1GE SFP ports
  PoE interface	(16) PoE (Pins 1, 2+; 3, 6-)
  LED Indicator	Power Link/Act PoE MAX
  Fan	N/A
  Switching capacity	40Gbps
  Forwarding rate	29.8Mpps
  Power method	100-240V AC，50 / 60Hz
  Power consumption	150W
  Total available PoE	135W
  Max. PoE wattage per port by PSE	30W
  Lightning protection	Port: 6 KV Power：6 KV
  Button	Funtion mode Button
  Operating temperature	0°C - 45℃
  Storage temperature	-40°C - 70°C
  Operating humidity	10% - 90%,non-condensing
  Storage humidity	5% - 90%,non-condensing
  Certifications	FCC, CE, RoHS
  Funtions	One-key to change network mode: 1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch. 2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested. 3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other. 4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
