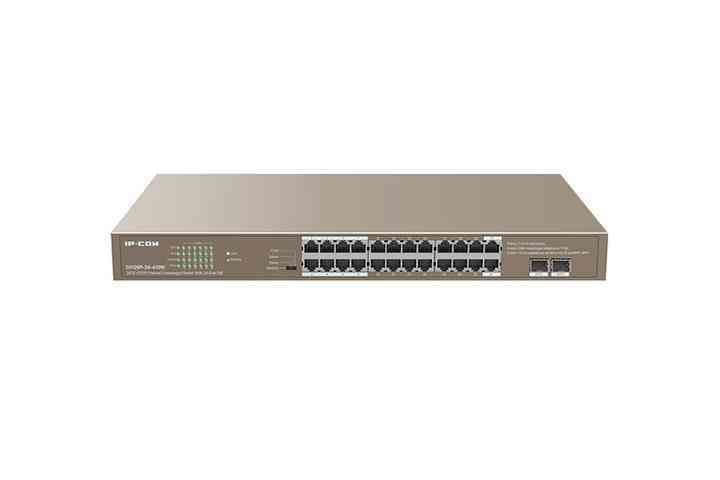

G1126P-24-410W 24-PoE Gigabit 410W

Ethernet Unmanaged Switch

● 24-Port PoE

● 48Gbps backplane bandwidth.

● 2*1000 Mbps Base-X SFP slots.

● 4 modes: standard, priority, extend and VLAN.

● Maximum power consumption of the switch: 410W.

● Maximum power consumption of a single port: 30W.

● 8K MAC address table and MAC address auto-learning.

● 24*100/1000 Mbps Base-T RJ45 ports for data transmission and power supply.

● IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.

● Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards.

G1126P-24-410W    Overview

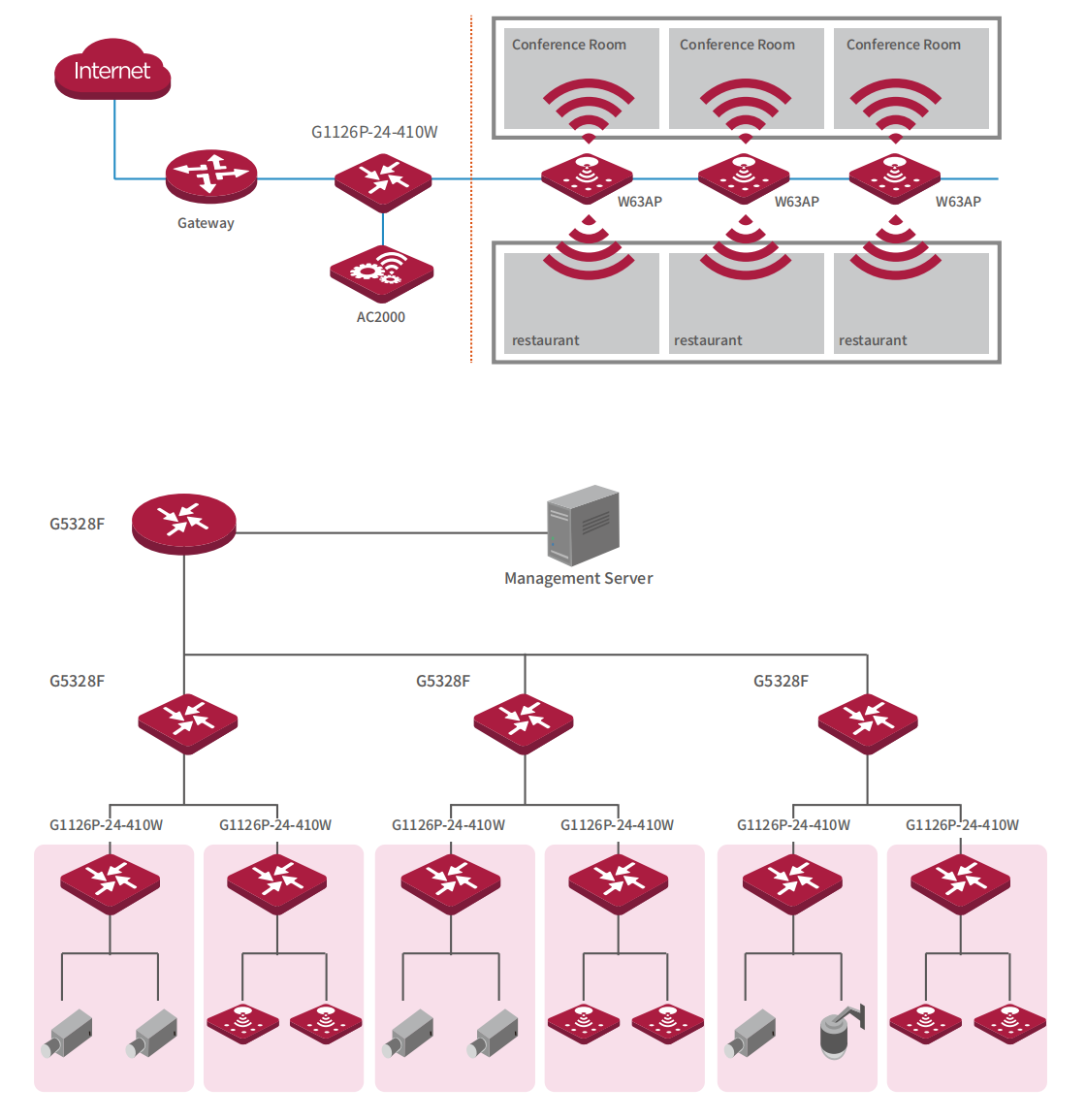

G1126P-24-410W is a unmanaged PoE switch independently designed by IP-COM. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelli-gently. With a maximum PoE power output of 370 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking require-ments.
