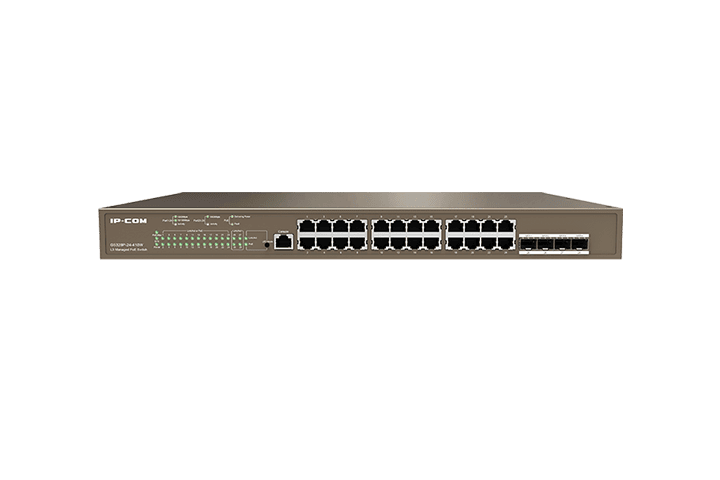

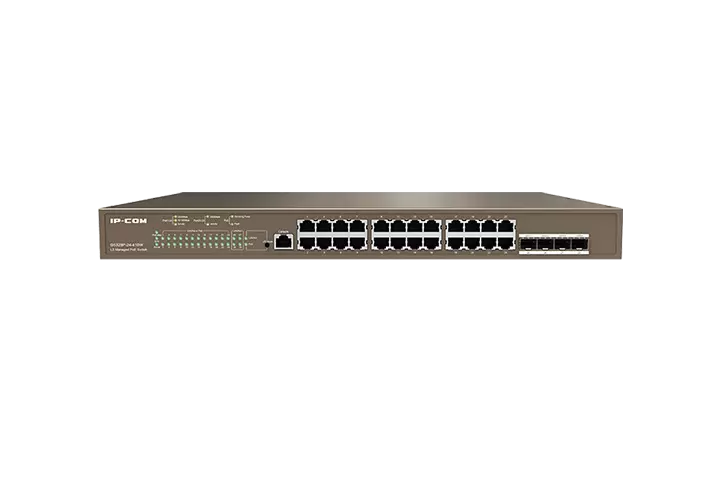

G5328P-24-410W

Name: G5328P-24-410W
Brand: IP-COM Networking
SKU: G5328P-24-410W
Price: 111.0 KWD
Availability: OutOfStock

111.000KWD

Out of stock

Tags:

L3 Managed PoE Switch

IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at

standards

24 x 10/100/1000 Base-T Ethernet ports (Data/Power), 4 separate 1000 Base-X

SFP ports

16 K MAC address table and MAC address auto-learning

Maximum PoE output power of a single port: 30 W, maximum PoE output power

of the whole switch: 370 W

Supports abundant services, such as static routing, VLAN, IGMP, QoS, ACL, DHCP

Snooping, ARP and Telnet

Built-in 6 kV professional lightning protection power, 19 inch/1 u standard

rack-mounted design

Hardware specifications
Standards	IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3ad,IEEE802.3z,IEEE802.3x,IEEE802.1p,IEEE802.1q,IEEE802.1w,IEEE802.1d,IEEE802.1s,IEEE802.3af/at
LED indicators	One Link/Act or PoE LED indicator for each port One Link/One Link/Act mode converting LED indicator for each device One PoE mode converting LED indicator for each device One PoE Max LED indicator for each device One Power LED indicator for each device One SYS LED indicator for each device
Interfaces	24 x 10/100/1000 Base-T Ethernet ports (Data/Power) 4 x 1000 Base-X SFP ports (Data)
Lightning protection	Port: 6kV Power: 6kV
Forwarding mode	Store-and-forward
Switching capability	56Gbps
Packet forwarding rate	41.7Mpps
Buffer	12Mbit
MAC address table	16K
PoE power supply	Ports 1 to 24 support IEEE 802.3af/at standard PoE power supply1 2 4 5 +, and 3 6 7 8 -
Whole switch consumption	Whole switch consumption: <410W Maximum PoE output power: 370 W
Input voltage	AC：100-240V～ 50/60Hz
Dimensions	440 mm x 284 mm x 44 mm(LWH)
Operating environment	Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing Storage humidity: (5% - 90%)RH, non-condensing
Certificates	CCC、FCC、CE、RoHS
