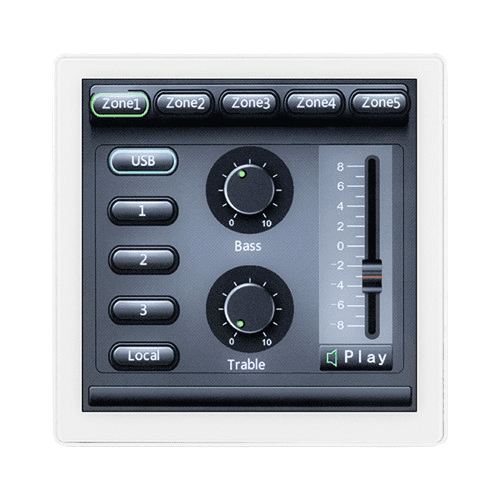

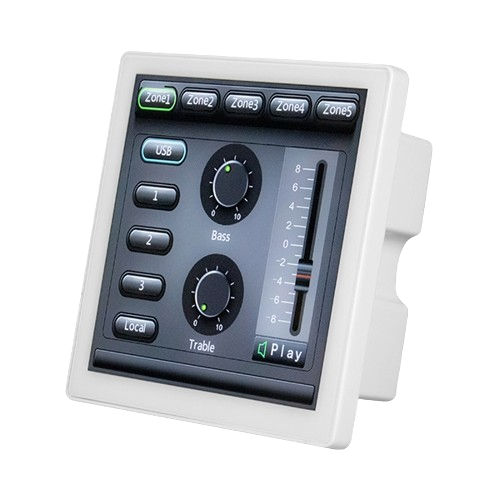

System Main Control Panel
● DC12V-24V power supply.
● Full Laminated capacitive touch panel, support gesture control.
● Standard Euro 86 box wall mounting dimension, 86×86×39(cm).
● Built-in Micro SD port, Supports up to 32GB memory card, with 128M card as standard.

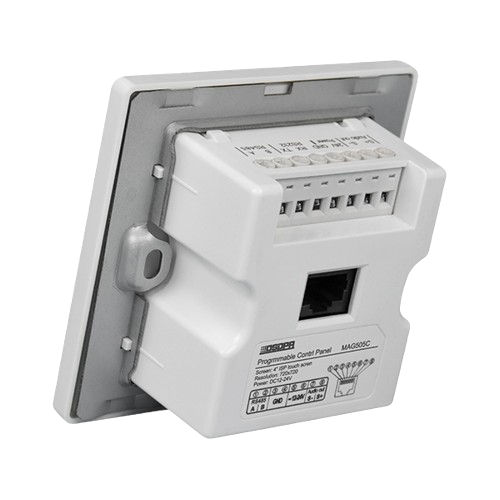

● 8-pin Euro terminal block, 1 RJ45 port, support single and multi-computer connection control.
● Specialized programming software is available; you can design the panel UI and model as you like.
● 4-inch ISP ultra-thin full–screen display with resolution 720×720 and the panel thickness is only 6 mm.
● 1 RS232 and 1 RS485 serial port, work with devices using RS485 or RS232 communication protocol to form an intelligent control system.
