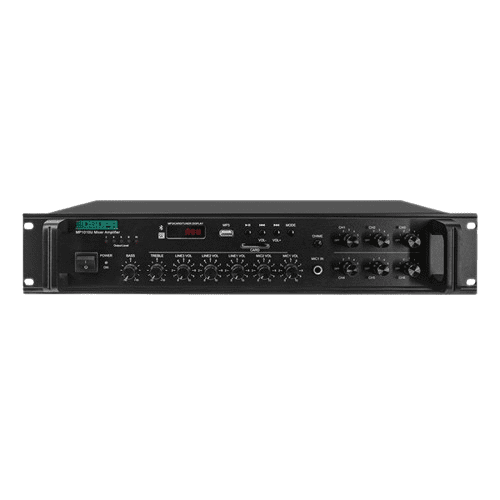

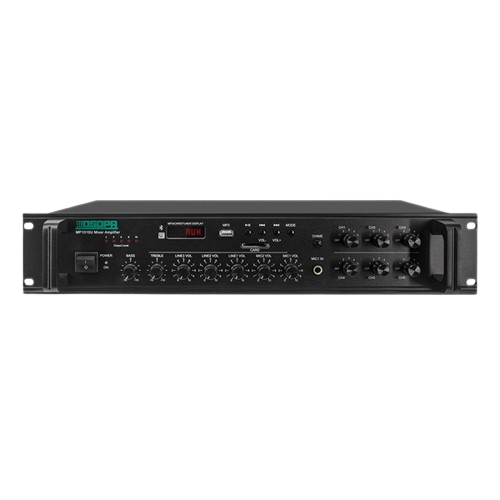

MP310U - 120W - 6-Zones
120W 6 Zones Paging Amplifier
● Treble and Bass control
● Chime with priority output.
● Mute function for priority input.
● Output short circuit protection and caution.

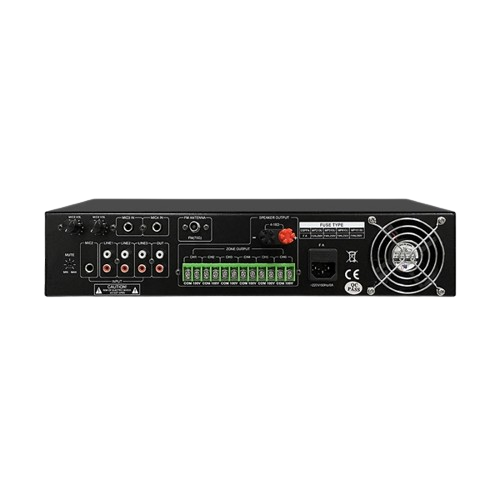

● 4 MIC inputs, 3 AUX inputs, and 1 AUX output.
● 5-unit LED indicates monitoring volume output in each zone.
● LED display indicates volume, playing status, program number, etc.
● Integrates MP3 player, FM tuner, zoner (6 zones), preamplifier and power amplifier.
● 6-zone selector, individual volume control and output level indication for each zone output.
● Infrared remote control to control MP3/TUNER, which includes modes switches, program selection, volume adjustment, repeat mode, EQ mode and USB/SD switches.
Model | MP210U | MP310U | MP610U | MP1010U |
Rated Output | 60W | 120W | 250W | 350W |
Output regulation | ≤3dB (from off-load to full load) | |||
Input sensitivity | Microphone :≤3mV (unbalanced) | |||
Line:≤300mV (unbalanced) | ||||
Frequency response | 80Hz-16KHz (±3dB) | |||
Distortion | ≤1%（1KHz，normal operating status） | |||
S/N Ratio | Line:≥74dB | |||
Tone | Bass: ±10dB（at 100Hz） | |||
Treble: ±10dB（at 10kHz） | ||||
Protection | DC voltage; overload; short-circuit. | |||
Mute | Input signals from MIC 1 override other input signals | |||
Power supply | AC 220-240V/50-60Hz | |||
Power Consumption | 120W | 250W | 500W | 650W |
Outer Packing Size(mm) | (L×W×H)555×455×185 | |||
Unit Size (mm) | (L×W×H)484×355×88 | |||
Gross Weight | 11.7kg | 13.5kg | 16kg | 17kg |
Net Weight | 9.7kg | 11.5kg | 14kg | 15kg |
_____________________________________________________________________
View/Download Datasheet
_____________________________________________________________________
This mixing amplifier is rated at 120V and 4-16 Ω speaker output are provided. There are 4 unbalanced microphones inputs and 3 aux inputs. Bass and treble controls are provided. This amplifier can be applied to different occasions, such as supermarket, classroom, etc. Extensive protection from short-circuit, overload and high temp is ensured. Automatic cooling system ensures the extreme quiet sound system. In addition, it can be called as pa system amplifier.
