MP35UB - 35W - 1-Zone
35W Mini Digital Mixer Amplifier
● 2 MIC inputs, 2 line inputs, 1 line output.
● Built-in Bluetooth, FM, and USB functions.
● 2 EMC inputs (100V/375mV), 1 EMC output.
● Can be controlled by the infrared remote controller.
● With the priority function, the priority is EMC/MIC1>AUX1/AUX2/MIC2.
● Support 100V/70V constant voltage output, and 4-16Ω constant resistance output.
● With master volume control, individual volume control for MIC & LINE, treble, and bass volume control.
Model | MP35UB | MP60UB | MP120UB |
Power Supply | ~110-240 50/60Hz | ||
MIC1 Input Sensitivity | 5.5mV±1mV | 7mV±1mV | |
MIC2 Input Sensitivity | 5.5mV±1mV | 7mV±1mV | |
AUX1 Input Sensitivity | 350mV±10% | 300mV±10% | |
AUX2 Input Sensitivity | 350mV±10% | 300mV±10% | |
EMC Input Sensitivity | 350mV±10% | ||
MIC Frequency Response | 200Hz~10kHz (±3dB) | 100Hz~8kHz (±3dB) | |
AUX Frequency Response | 100Hz~15kHz (±3dB) | 80Hz~15kHz (±3dB) | |
Noise | <5mV (4Ω load out) | ≤6mV (4Ω load out) | |
Distortion | <1% 1KHZ | ||
Treble Adjustment | 10dB (±2) | ||
Bass Adjustment | 10dB (±2) | ||
Rated Output Power | 35W | 60W | 120W |
Interface Output Mode | 70V, 100V (constant voltage output), 4-16Ω | ||
Power Consumption | 10W | ||
Machine Size (D×W×H) | 198×247×66mm | ||
Package Size | 302×343×121mm (1PC) | ||
Maximum Package Size | 355×630×283mm (4PCS) | ||
Net Weight | 2.55kg | 2.6kg | 3kg |
Gross Weight | 3.2kg (1PC) | 3.25kg (1PC) | 3.7kg (1PC) |
_________________________________________________________________________________
__________________________________________________________________________________

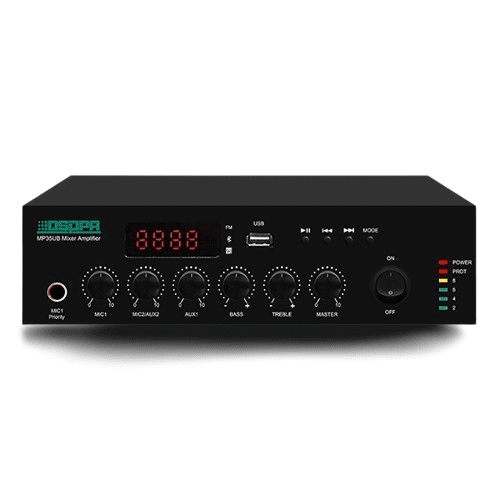

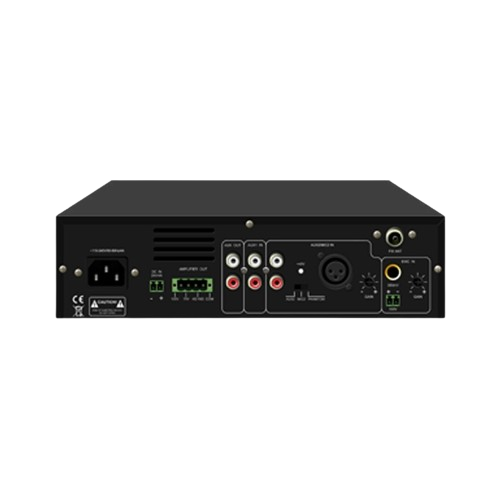

MP35UB is 1.5U designed Mini Digital amplifier with USB/FM and Bluetooth. The Speaker output is 70V/100V and 4-16Ω available, 3 Aux input, Min1 is 6.3 mm jack in front panel and Mic2 is XLR in rear panel, Phantom power available for Mic2. Individual volume control for each Mic and Aux, also provide Bass and Treble control. What's more, it also has EMC signal input for emergency situation. This product can be called mini digital amplifier or Bluetooth mini amplifier.
