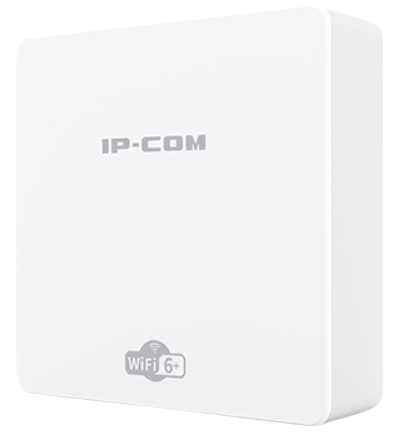

Pro-6-IW Wifi-6 2402Mbps
In Wall Access Point
● 2.4 GHz 1-574 Mbps.
● 5 GHz 6-2402 Mbps.
● One 1000 Mbps LAN Port.
● One 1000 Mbps LAN Port (PoE).
● Separated IPTV and Internet ports.
● WEP, WPA-PSK, WPA2-PSK, WPA3-SAE, WPA & WPA2.
Hardware Specifications | |
|---|---|
Frequency band | 2.4 GHz, 5 GHz |
Wireless standards | IEEE 802.11a/b/g/n/ac/ax |
2.4 GHz data rate | 1-574 Mbps |
5 GHz data rate | 6-2402 Mbps |
Channel width | 20 MHz/40 MHz/80 MHz/160MHz |
MU-MIMO | 2X2 MU-MIMO |
Ethernet port | One 1000 Mbps LAN Port (PoE) |
Button | 1*Reset |
LED indicator | Bi-Color LEDs |
Max. power consumption | 8.5W |
Power supply standard | IEEE 802.3af PoE, DC 12V 1A |
Max. connected clients | 256 |
2.4 GHz Antenna gain | 4 dBi |
5 GHz Antenna gain | 5 dBi |
Transmission Power | CE:<20 dBm(2.4 GHZ, EIRP) <23 dBm(5 GHZ, EIRP) |
2.4 GHz 802.11b RX sensitivity | -95.5 dBm |
2.4 GHz 802.11n (MCS7) RX sensitivity | -72.5 dBm |
5 GHz 802.11a RX sensitivity | -97.5 dBm |
5 GHz 802.11n (MCS7) RX sensitivity | -77.5 dBm |
______________________________________________________________________________
______________________________________________________________________________
Pro-6-IW Overview
Pro-6-IW is a Gigabit dual-band panel AP based on the new Wi-Fi 6 standard. It realizes a bandwidth of 160 MHz and a wireless rate of 3000 Mbps, which is twice that of ordinary Wi-Fi6 products. The fast roaming feature enables the AP to automatically select a better quality wireless network. With just one Ethernet cable, you can enjoy both wireless and wired networks. Pro-6-IW is a wise choice for you to deploy high-performance WLAN network for the double-sided tape installation method it added.
