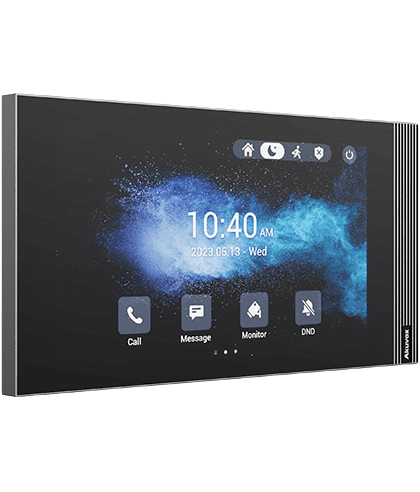

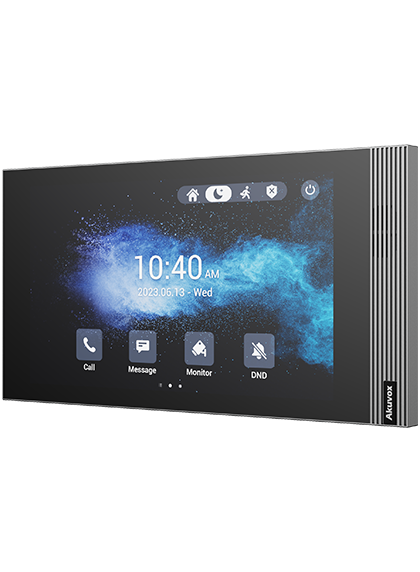

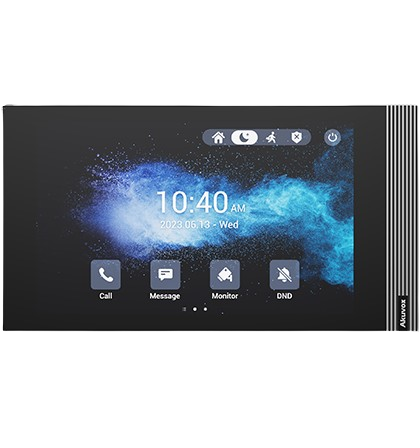

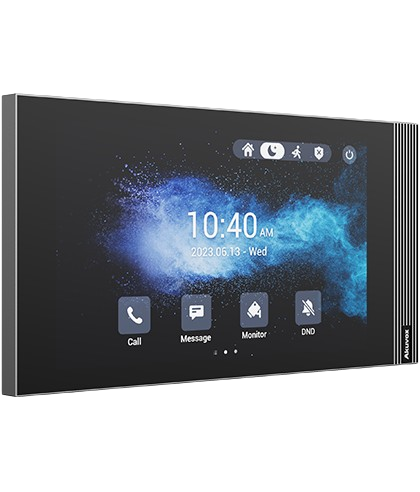

S562 - 7" - Linux
Indoor Monitor
● Linux OS.
● Supports RS485.
● 1024 x 600 Resolution.
● 7” Capacitive touch screen.
● Dimensions: 216.4 x 118.8 x 21.7 mm.
Accessories
S562 Desktop Stand
S562 On-Wall Mounting Stand
S562 Surface Mount Angle
S562 Desktop Bracket
_________________________________________________________________________________
__________________________________________________________________________________
Physical & Power
Front panel: Plastic
RAM/ ROM:128MB / 128MB
Display: 7 Inch TFT LCD 1024x600 resolution
Screen: 7 lnch capacitive touch screen
RS485 port: Support
Relay out: 1
Bell in: 1
l/0: 8
Microphone: -42dB
Speaker: 4Ω /2w
Ethernet ports: 2xRJ45, 10/10OMbps adaptive
802.3af Power-over-Ethernet
12V DC connector (if not using PoE)
Installation: Wall-mounted & Desktop
Dimension: 216.4x118.8x21 . 7mm
Working Humidity: 10~90%
Working Temperature: -10°C~ +45°C
Storage Temperature: -20°C~ +70°C
