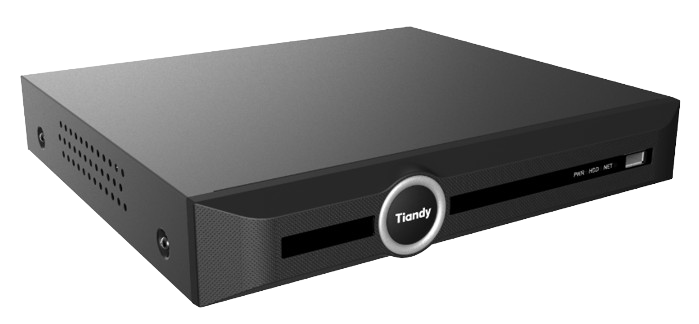

H.265 1HDD 5ch PSE NVRSpec: I/B/P4/K/V3.1
● S+265/H.265/H.264 video formats.
● 1 SATA interface, up to 10TB for 1 HDD.
● 1×HDMI and 1×VGA simultaneous outputs.
● Connectable to the third-party network cameras.
● Support live view, storage, and playback of the connected camera at up to 8MP resolution.
Product Description
Video and Audio |
|
Access Channel | 5 |
Incoming Bandwidth | 80Mbps |
Outgoing Bandwidth | 80Mbps |
Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Preview Decoding Capability | 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×5, 720P(30fps)×5, 4CIF(30fps)×5; *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
Playback Decoding Capability | 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×5, 720P(30fps)×5 |
Third-party Camera Access | ONVIF(Profile S/T); RTSP |
HDMI Output | HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (2K)2560×1440(30Hz), (4K)3840×2160(30Hz) |
VGA Output | VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
Multi-screen Display | Simultaneous Output: VGA: 1/2A/2B/3/4/5/6 HDMI: 1/2A/2B/3/4/5/6 |
Audio Input | 1-ch, 3.5mm |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio | 1-ch, 3.5mm, using the audio input |
Compression |
|
Video | S+265; H.265; S+264; H.264 |
Audio | G711A; G711U; AAC; ADPCM_DIV4 |
Stream Type | Video; Video & Audio |
Network |
|
Network Protocol | 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP/IP; UDP; Unicast; UPnP |
Mobile Phone Access | Android; iOS; P2P |
System Compatibility | ONVIF(Profile S/T/G); RTSP; CGI; SDK; Milestone |
Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
Record Playback |
|
Multi-channel Playback | 5 |
Record Mode | Manual Recording; Alarm Recording; Schedule Recording |
Storage Method | Local HDD |
Backup | USB storage device, Network |
Playback Function | Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay |
Dual Stream Record | Yes |
Alarm |
|
General Alarm | Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR) |
Exceptions Alarm | Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict |
Intelligent Analytics |
|
AI by Camera | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Face Detection; Smart Motion; Human/Vehicle Classification; Loitering |
VCA Search | Heatmap; Early-warning Search; Behavior Search; Duty Search; Electric Bicycle Retrieval; Face Search |
Face Detection |
|
Face Attributes | Gender; Age; Glasses; Face Mask |
Storage |
|
HDD Capacity | Up to 10 TB capacity for each HDD |
Disk Group | 1 Disk Group |
External Port |
|
USB | 2×USB2.0 |
HDMI | 1×HDMI(supports up to 4K resolution output) |
VGA | 1×VGA |
Network Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
SATA | 1×SATA interface |
Alarm I/O | 4-ch, TTL inputs, 3mA, 3.3VDC; 1-ch, relay output, 1A, 24VDC |
PoE |
|
PoE Interface | 4×RJ45, 10/100 Mbps self-adaptive Ethernet port |
PoE Budget | 45W |
Power per PoE Port | 30W |
Standard | IEEE 802.3 af/at |
General |
|
UI Language | Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek |
Power Supply | DC48V 1.35A |
Power Consumption | <10W(without HDD&without PoE) |
NetWeight | 0.95kg |
GrossWeight | 1.65kg |
Boundary Dimensions | 255(L)231(W)45(H)mm |
Package Dimensions | 385(L)80(W)280(H)mm |
Operating Temperature | -10℃~+55℃ (+14℉~+131℉) |
Operating Humidity | 10%~90%RH (non-condensing) |
Storage Temperature | -20℃~+60℃ (-4℉~+140℉) |
Package Kit | Network Video Recorder; Screw Pack; Mouse; Power Adapter; European Standard Power Cord |
