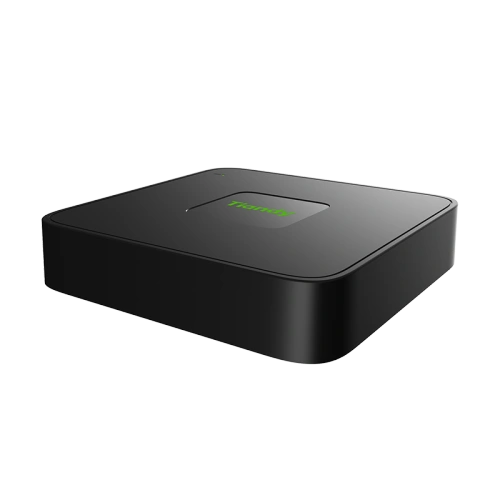

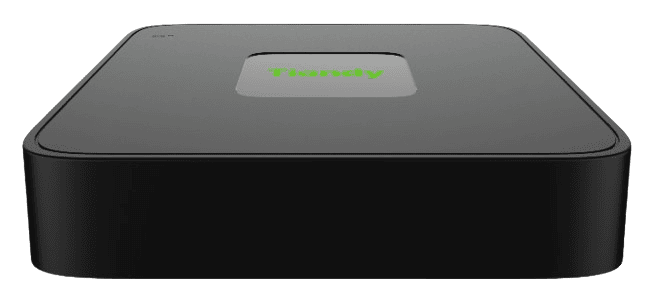

TC-R3110 10ch 8-POE Ports

Video and Audio

Access Channel

10

Incoming Bandwidth

60Mbps

Outgoing Bandwidth

40Mbps

Resolution

6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Decoding Capability

6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×10

Playback Decoding Capability

6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4

Third-party Camera Access

ONVIF(Profile S/T); RTSP

HDMI Output

HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz)

VGA Output

VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)

Multi-screen Display

Simultaneous Output: VGA: 1/2/3/4/5/6/7/8/9/10 HDMI: 1/2/3/4/5/6/7/8/9/10

Compression

Video

S+265; H.265; S+264; H.264

Audio

G711A; G711U; ADPCM_DIV4

Stream Type

Video; Video & Audio

Network

Network Protocol

ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP

Mobile Phone Access

Android; iOS; P2P

System Compatibility

CGI; SDK

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Record Playback

Multi-channel Playback

4

Record Mode

Alarm Recording; Schedule Recording

Storage Method

Local HDD

Backup

USB storage device

Playback Function

Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital Zoom

Alarm

General Alarm

Motion Detection; Mask Alarm; Alarm Input(IPC)

Exceptions Alarm

Video Loss; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict

Intelligent Analytics

AI by Camera

Smart Motion

Storage

HDD Capacity

Up to 6 TB capacity for each HDD

External Port

USB

2×USB2.0

HDMI

1×HDMI(supports up to 4K resolution output)

VGA

1×VGA

Network Interface

1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

SATA

1×SATA interface

PoE

PoE Interface

8×RJ45, 10/100 Mbps self-adaptive Ethernet port

PoE Budget

70W

Power per PoE Port

30W

Standard

IEEE 802.3 af/at

General

UI Language

English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese

Power Supply

DC48V

Power Consumption

<10W(without HDD&without PoE)

NetWeight

0.47kg

GrossWeight

1.07kg

Boundary Dimensions

200(L)200(W)43(H)mm

Package Dimensions

315(L)70(W)235(H)mm

Operating Temperature

-10℃~+55℃ (+14℉~+131℉)

Operating Humidity

10%~90%RH (non-condensing)

Storage Temperature

-20℃~+60℃ (-4℉~+140℉)

Package Kit

Network Video Recorder; Screw Pack; Mouse; European Standard Power Adapter (DC48V 1.875A)
