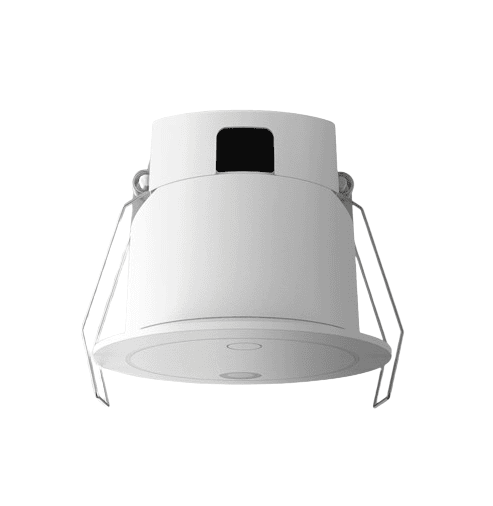

Zigbee Human Presence Detector
67.000KWD
Zigbee Human Presence Detector
● 24GHz radar with high-gain antenna for precise indoor human movement detection
● Power Supply: 220-240VAC, 50/60Hz
● Working Temperature: 0-50°C
● Connections: 2.4-2.484GHz ZigBee Transmitting Frequency
● Illuminance: 5-1200Lux
● Detection Radius: Movement: 4-5m (at 3m height)
● Detecting Angle: 100° (XZ field) and 100° (YZ field)
● Install Height: 2.5-4.0m (typical value: 3m)
● Connections: RS485/KNX/UART (Third party module)
